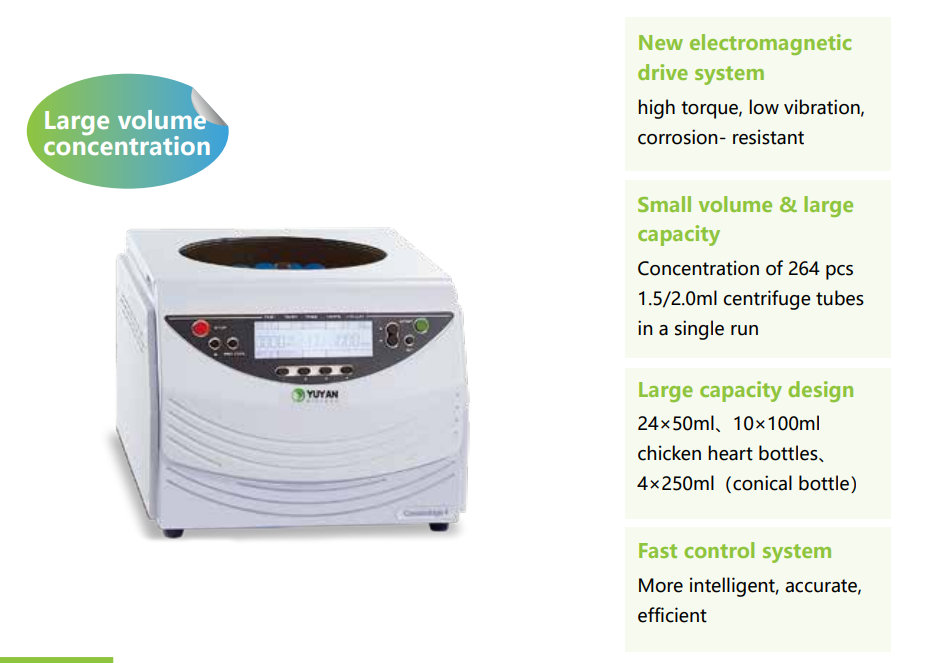

Centrifugal
Vacuum Concentrator
Concenfuge 4/4R

New electromagnetic drive system

high torque, low vibration, corrosion- resistant

Small volume & large capacity

Concentration of 264 pcs 1.5/2.0ml centrifuge tubes

in a single run

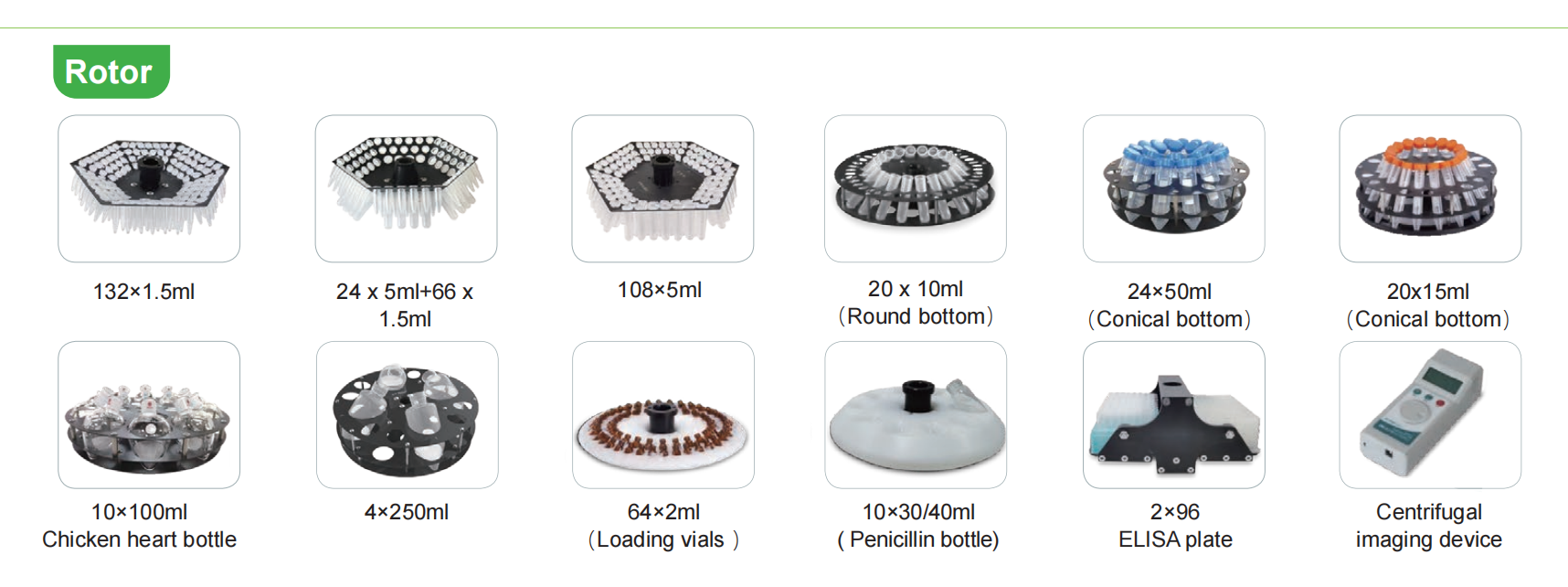

Large capacity design

24×50ml、10×100ml

chicken heart bottles、4×250ml（conical bottle）

Fast control system

More intelligent, accurate, efficient

Product Features

Built-in automated vacuum control system, control range 0.1~99.9mbar, control precision ±0.1mbar
2-stage temperature control, protecting sample safety effectively
4 groups program shortcut key, 30 groups user-defined programs
Centrifugal imaging function, observing concentration progress without power off the concentrator
Imported pressure relief valve with automatic vacuum release, safe and easy to operate
Corrosion-resistant vacuum design, unaffected by organic solvents

Technical Parameters

Technical Parameters	Concenfuge 4	Concenfuge 4R
Speed range	800rpm~2000rpm	800rpm~2000rpm
Max. Centrifugal force	650×g	650×g
Timing range	1~9999min	1~9999min
Sample chamber precooling function	N	Y
Centrifugal imaging function	Y	Y
Temperature control range	RT+5℃~+90℃	-10℃~+100℃
Temperature control precision	±1℃	±1℃
Ultimate vacuum	≤0.3mbar	≤0.3mbar
Noise	≤55dB(A)	≤60dB(A)
Power	1300W	1300W
Power supply	AC220V 50Hz/60Hz 10A	AC220V 50Hz/60Hz 10A
Dimension（LDH）	550×420×300mm	640×420×350mm
Weight	33.5KG	57.3KG
