Professional freeze dryer explores the new peak of lab freeze dryer!

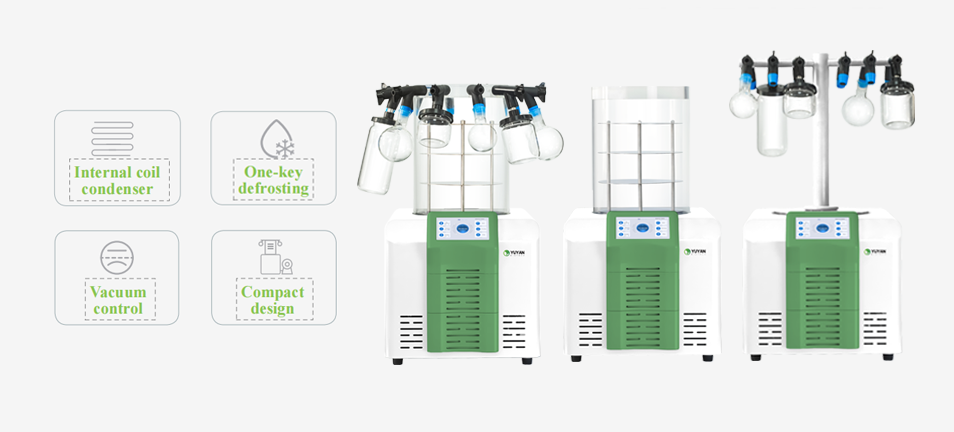

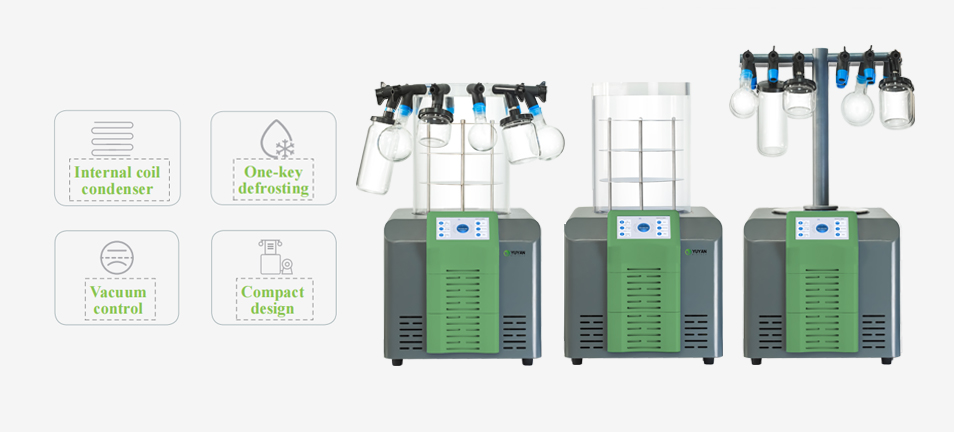

LFD series freeze dryer has LFD 4055 and LFD 4085,compatible with various chambers, compact design, suitable to all kinds of small/medium/big labs!
|
Technical Specifcation |
LFD 4 series |
||
|
LFD 4055/4085 |
|||
|
Lyo S operating system |
● |
Condenser temperature |
55/-85℃ |
|
Vacuum control |
● |
Shelf Qty. |
3 or more shelves |
|
Hot gas defrosting |
● |
Shelf area |
0.16 ㎡ -0.32 ㎡ |
|
Flange face seal |
● |
Shelf dimension |
Ф260mm |
|
External coil condenser |
● |
Condenser efciency |
4Kg/24h |
|
Tefon anti-corrosion coating |
● |
Max. ice capacity |
4Kg |
|
Frosting-proof insulation |
● |
Ultimate vacuum |
0.01mbar/1pa |
|
Sample temperature stimulation |
● |
Vacuum control range |
0.001-1000mbar |
|
One-key pressure relief |
● |
Main unit dimension |
W455*D550*H430mm |
|
Vacuum pump anti-backflling design |
● |
Main unit weight |
53kg/66kg |
|
Corrossion-resistant pump |
○ |
Main unit power |
0.8KW/1.3KW |
|
Stopperring device |
○ |
Power supply |
10A，220V |
