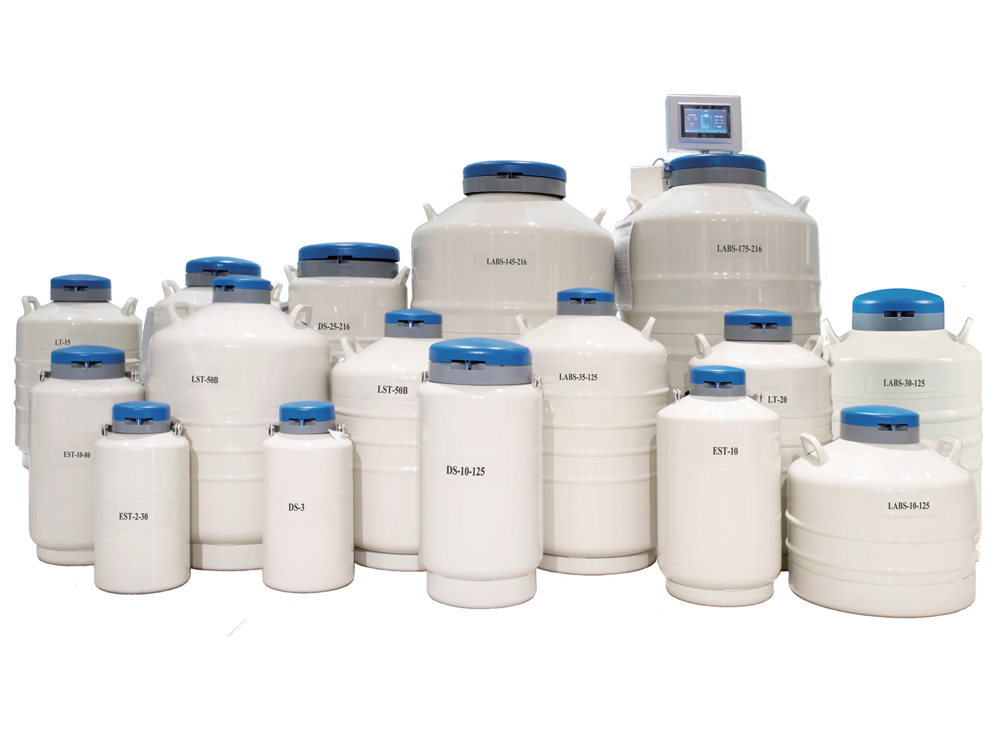

Square-Canister LABS Series

  • Hits:633
  • Time:2024-10-30

Details


The large-neck square-canister series combines the advantages of low liquid-nitrogen consumption and medium-scale cryovial storage capacity. Its large neck opening and easily-retrievable cryoracks make it suitable for scenarios requiring long-term biological sample storage and frequent sample access. Featuring light weight and small footprint, this series is the preferred choice for small-scale biobanks or early-stage biobank construction.

Product advantages

  • Low LN₂ consumption ultra-low-temperature environment: Cryoracks are placed in this low LN₂ consumption ultra-low-temperature environment for storing large volumes of medical samples. Even for long-term vapor-phase storage, the temperature remains below -190°C, which is also applicable for storing a small number of experimental samples.
  • Insulation and Vacuum Technology: The thermal insulation layer is wound by an automatic winding machine to realize multi-layer vacuum insulation, delivering more stable thermal insulation performance. With human-oriented design, the equipment can still operate even under power-off conditions.
  • Compatible with Blood Bag Storage: The medical-grade series liquid nitrogen containers can be modified to store 25 ml blood bags according to actual user requirements. It is suitable for scenarios with a small quantity of blood bags, for the interim storage period before transferring samples to large-capacity liquid nitrogen tanks.
  • Temperature Monitoring:The stopper is equipped with a built-in temperature probe to monitor the top-chamber temperature inside the tank in real-time, with over-temperature alarm function.

Product Features

  • Cryoracks and cryoboxes are supplied as standard.
  • Canister handles are color-coded for easy identification.
  • Adopts high-strength fiberglass steel neck tube with excellent mechanical strength.
  • Adopts high-vacuum multi-layer wound insulation structure for ultra-low liquid-nitrogen consumption.
  • Made of high-strength, low-weight aluminum alloy with integrated stretch forming manufacturing process.
  • Lockable tank stopper ensures sample safety.
  • Manufactured in accordance with international standards for safety and durability.
  • Static storage tanks and transport tanks; multiple configuration options available.
  • Damped-design tank stopper supports multi-angle hovering to facilitate sample access.
  • Optional accessories: remote liquid-level & temperature monitoring system, automatic liquid-nitrogen filling system, mobile transport cart, square canisters and round canisters.

Technical Parameters

Internal Details




Specification Selection

Model (Square Canister)

LABS-10-125

LABS-30-125

LABS-35-125

LABS-47-127

LABS-50B-125

Product Performance

Effective Volume (L)

10.0

31.5

35.5

47.0

50.0

Neck Opening (mm)

125

125

125

127

125

Static Evaporation rate (L/d)

0.40

0.33

0.32

0.35

0.38

Static Holding Days (d)

25

95

111

134

132

Storage Capacity

5*5

Square Canister

No. of Square Canisters(ea)

1

6

6

6

6

Square Canister Dimensions (mm)

82×84

82×84

82×84

82×84

82×84

Box Dimensions (mm)

76×76

76×76

76×76

76×76

76×76

Layers of Square Canisters (ea)

4

4

5

5

6

Qty. of 2 ml Internal-

thread Cryovials (ea)

100

600

750

750

900

25 ml (per ea)

No. of Canisters (ea)

─

18

18

18

18

No. of Cryorack Layers (ea)

─

2

3

3

3

No. of Blood Bags (ea)

─

36

54

54

54

25 ml (multiple ea)

No. of Canisters (ea)

─

6

6

6

6

No. of Cryorack Layers (ea)

─

2

3

3

3

No. of Side-by-Side Cryoboxes (ea)

─

4

4

4

4

No. of Blood Bags (ea)

─

48

72

72

72

50 ml (per ea)

No. of Canisters (ea)

─

18

18

18

18

No. of Cryorack Layers (ea)

─

1

1

1

2

No. of Blood Bags (ea)

─

18

18

18

36

50 ml (multiple ea)

No. of Canisters (ea)

─

6

6

6

6

No. of Cryorack Layers (ea)

─

1

1

1

2

No. of Side-by-Side Cryoboxes (ea)

─

4

4

4

4

No. of Blood Bags (ea)

─

24

24

24

48

Container Dimensions

Total Height (Including Lock-able Lid) (mm)

580

725

755

730

800

Outer Diameter (mm)

300

451

451

498

498

Empty Weight (Without Canister) (kg)

6.6

14.6

15.1

18.3

21.5

Empty Weight (With Canister) (kg)

6.8

17.1

17.9

21.3

25.0

Total Height (Including Lock-able Lid) (mm)

580

725

755

730

800

Accessories

Lock Cover

Standard

Standard

Standard

Standard

Standard

Protective Cover (Leather Cover)

Standard

Standard

Standard

Standard

Standard

Intelligent Monitoring Terminal

Optional

Optional

Optional

Optional

Optional

Carrying Cart

Optional

Optional

Optional

Optional

Optional

Canister

1 pcs (Std.)

6 pcs (Std.)

6 pcs (Std.)

6 pcs (Std.)

6 pcs (Std.)



Model (Square Canister)

LABS-65-216

LABS-95-216

LABS-120-216

LABS-145-216

LABS-175-216

Product Performance

Effective Volume (L)

65.0

95.0

121.0

145.0

175.0

Neck Opening (mm)

216

216

216

216

216

Static Evaporation rate (L/d)

0.80

0.81

0.85

0.85

0.85

Static Holding Days (d)

81

117

142

171

206

Storage Capacity

10*10

Square Canister

No. of Square Canisters (ea)

6

6

6

6

6

Square Canister Dimensions (mm)

142×144

142×144

142×144

142×144

142×144

Box Dimensions (mm)

134×134

134×134

134×134

134×134

134×134

Layers of Square Canisters (ea)

4

5

6

8

10

Qty. of 2 ml Internal-

thread Cryovials (ea)

2400

3000

3600

4800

6000

25 ml (per ea)

No. of Canisters (ea)

30

30

30

30

30

No. of Cryorack Layers (ea)

2

3

3

4

5

No. of Blood Bags (ea)

60

90

90

120

150

25 ml (multiple ea)

No. of Canisters (ea)

6

6

6

6

6

No. of Cryorack Layers (ea)

2

3

3

4

5

No. of Side-by-Side Cryoboxes (ea)

13

13

13

13

13

No. of Blood Bags (ea)

156

234

234

312

390

50 ml (per ea)

No. of Canisters (ea)

30

30

30

30

30

No. of Cryorack Layers (ea)

1

1

2

2

3

No. of Blood Bags (ea)

30

60

60

60

90

50 ml (multiple ea)

No. of Canisters (ea)

6

6

6

6

6

No. of Cryorack Layers (ea)

1

1

2

2

3

No. of Side-by-Side Cryoboxes (ea)

13

13

13

13

13

No. of Blood Bags (ea))

78

78

156

156

234

Container Dimensions

Total Height (Including Lock-able Lid) (mm)

730

795

960

1035

1085

Outer Diameter (mm)

678

678

678

678

678

Empty Weight (Without Canister) (kg)

40.0

44.0

51.4

55.0

58.0

Empty Weight (With Canister) (kg)

46.5

51.0

60.0

66.5

71.0

Total Height (Including Lock-able Lid) (mm)

730

795

960

1035

1085

Accessories

Lock Cover

Standard

Standard

Standard

Standard

Standard

Protective Cover (Leather Cover)

Optional

Optional

Optional

Optional

Optional

Intelligent Monitoring Terminal

Optional

Optional

Optional

Optional

Optional

Carrying Cart

Optional

Optional

Optional

Optional

Optional

Canister

6 pcs (Std.)

6 pcs (Std.)

6 pcs (Std.)

6 pcs (Std.)

6 pcs (Std.)


▲ ※ The above technical parameters only represent the actual specifications of the square-canister LABS series.

Maximum Storage Capacity: Indicates the maximum sample storage capacity of the model. Accessories such as cryovials, cryoracks and canisters need to be ordered separately.

Static Evaporation Rate: Under the specified filling rate, after the container stands still and reaches thermal equilibrium, it refers to the mass of liquid nitrogen lost by natural evaporation within 24 h, converted to the value under standard conditions (atmospheric pressure 101.325 kPa, ambient temperature 20 °C).

Static Liquid-Nitrogen Holding Period: Under standard conditions (atmospheric pressure 101.325 kPa, ambient temperature 20 °C), after the container is filled with liquid nitrogen, pre-cooled and reaches thermal equilibrium with 100 % liquid-nitrogen filling rate, it means the number of days for static storage until all liquid nitrogen evaporates completely.

Normal Operating Duration: The working days of the container under normal service conditions after being fully filled with liquid nitrogen. The actual operating duration may deviate due to factors including ambient temperature and humidity, service life of the container, accessory configuration and operation modes.

※ This value only indicates the maximum storage capacity when the product is loaded with internal-thread cryovials (based on 10×10 storage boxes). The 9×9 cryobox is supplied as default upon order. If 10×10 storage boxes are required to achieve the maximum storage capacity, please add special remarks when placing the order.
