LN2 Freezer

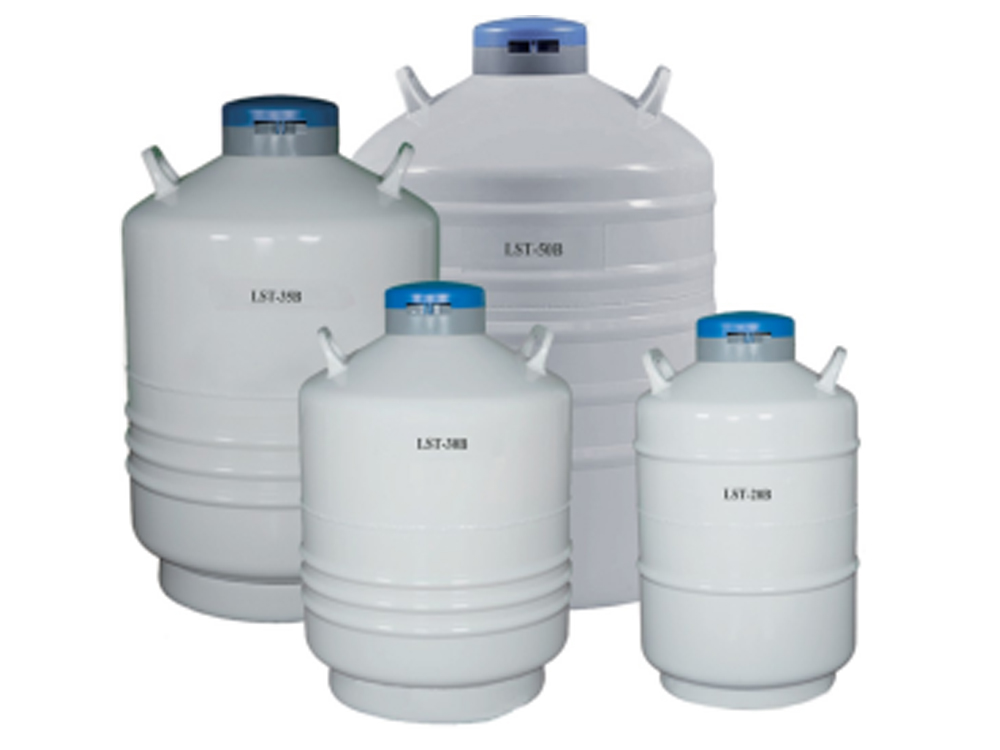

LST Series

  • Hits:611
  • Time:2024-10-30

Details

The LST Series is an economical small-size LN₂ transport tank, specially designed for biological samples requiring transportation or static storage. Manufactured from high-strength and light-weight aluminum alloy, the unit incorporates multi-layer high-performance insulation layers to deliver safety, portability and high efficiency.

Advantages

★  Compact & Light-weight

Robust durable aluminum construction features high strength and low weight. Equipped with handles for easy portable transportation..

★  Convenient Sample Access

Markable canisters allow quick and efficient location of required samples.

★  Low LN₂ Consumption

High-vacuum insulation technology & wrapped multi-layer insulation enable low energy consumption of the container and achieve ultra-low evaporation loss of liquid nitrogen..

★  Low Heat-Transfer Design

Special thermal-insulated connections between inner and outer tanks, narrow neck opening design, and custom fiberglass material block heat conduction inside and outside the LN₂ tank. It realizes step-like thermal insulation between inner and outer liners and ensures uniform temperature inside the tank..

Internal Details









Specification Selection

Model

LST-16B-80

LST-20B

LST-30B

LST-30B-80

Product Performance

Effective Volume (L)

16

20

31.5

31.5

Neck Opening (mm)

80

50

50

50

Static Evaporation rate (L/d)

0.26

0.20

0.15

0.26

Static Holding Days (d)

62

100

210

121

Storage Capacity

Canister Outer Diameter (mm)

63

38

38

63

Canister Height (mm)

120

120

120

120

Qty. of Canisters (ea)

6

6

6

6

Straw Capacity (Single-layer)

0.5ml(ea)

2244

792

792

2244

0.25ml(ea)

5022

1788

1788

5022

Straw Capacity (Double-layer)

0.5ml(ea)

─

1284

1284

3624

0.25ml(ea)

─

2832

2832

8460

Container Dimensions

Total Height (Including Lock-able

Lid) (mm)

470

685

710

710

Outer Diameter (mm)

451

396

451

451

Empty Weight (Without Canister)

(kg)

10.2

11.8

13.9

13.9

Empty Weight (With Canister) (kg)

10.9

12.3

14.5

14.6

Accessories

Lock Cover

Standard

Standard

Standard

Standard

Protective Cover

Standard

Standard

Standard

Standard

Canister

Optional

Optional

Optional

Optional

Transport Cart

Optional

Optional

Optional

Optional


Model

LST-35B

LST-35B-80

LST-50B

LST-50B-80

Product Performance

Effective Volume (L)

35.5

35.5

50

50

Neck Opening (mm)

50

80

50

80

Static Evaporation rate (L/d)

0.17

0.29

0.16

0.28

Static Holding Days (d)

215

122

313

179

Storage Capacity

Canister Outer Diameter (mm)

38

63

38

63

Canister Height (mm)

120

120

120

120

Qty. of Canisters (ea)

6

6

6

6

Straw Capacity (Single-layer)

0.5ml(ea)

792

2244

792

2244

0.25ml(ea)

1788

5022

1788

5022

Straw Capacity (Double-layer)

0.5ml(ea)

1284

3624

1284

3624

0.25ml(ea)

2832

8460

2832

8460

Container Dimensions

Total Height (Including Lock-able

Lid) (mm)

745

750

760

765

Outer Diameter (mm)

451

451

498

498

Empty Weight (Without Canister)

(kg)

14.3

14.7

20.0

20.6

Empty Weight (With Canister) (kg)

14.8

15.5

20.5

21.3

Accessories

Lock Cover

Standard

Standard

Standard

Standard

Protective Cover

Standard

Standard

Standard

Standard

Canister

Optional

Optional

Optional

6 pcs (Std.)

Transport Cart

Optional

Optional

Optional

Optional
