Usage Environment: Room temperature, relative humidity 35-75%
Cooling method: Air Cooling
Rated power: 288W
—Hardware
Technical Parameters
Weight: 15kg
Applicable hose size: 1/8 "x1/4"; 1/4 "x7/16 "; 3/8"x5/8"; 1/2"x3/4 "; 1/2 x1"
Material: PE,can be disinfected with 75% alcohol
Hose Type: Applicable toC-FLEX, PharMed BPT, Advantaflex and other TPE tubes
Welding positioning accuracy:5um
Welding cycle time:2-2.5min
Blade size: 82.5mm*38mm*0.4mm
Equipment dimensions:560mm*263mm*269mm
Power supply: 100-240V AC,47-63Hz
Product Advantages
High-precision motor is used, and the error is controlled below 5um. Smoke removal filter is installed during welding.
The tool holder is made of allov and can be reused more than 20 times.
—Software
It can store the parameters of TPE pipe welding pipes of different brands and specifications, and can be retrieved as needed. The software complies with audit tracking, authority management and electronic signature, and is easy to operate with one click.

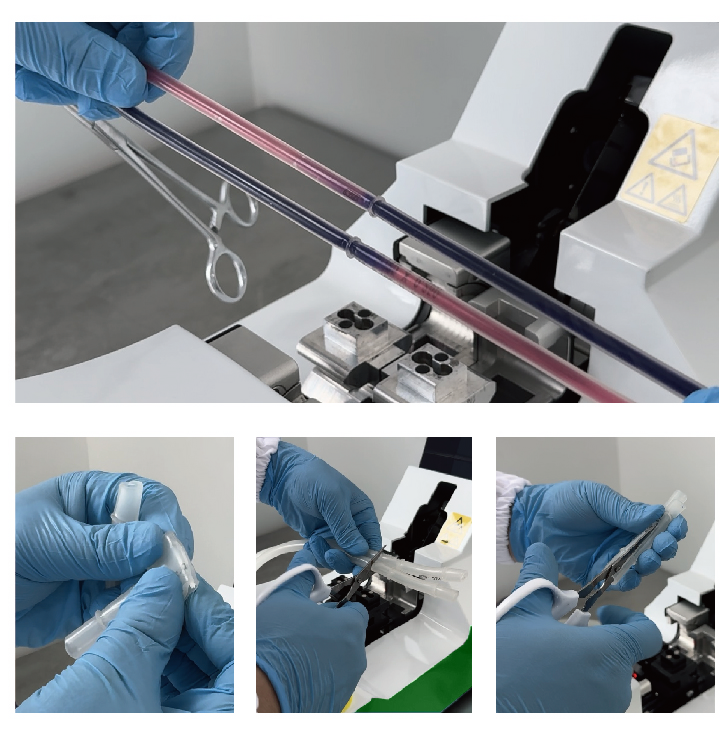

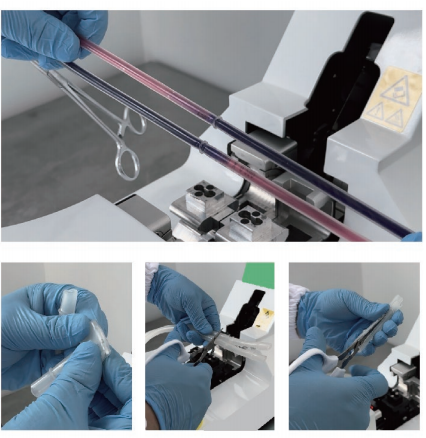

—Welding effect
Empty pipe welding and liquid welding 100% welding without leakage.
Liquid and liquid welding completed at 1 bar pressure.
1/8*1/4 (outer diameter 6.4mm) Empty pipe welding and liquid welding inner wall has no adhesion and can be easily separated.
—Experimental data After-sales
Microbial challenge test
Tensile test
Explosion test
Collision test
Anti-aging test
