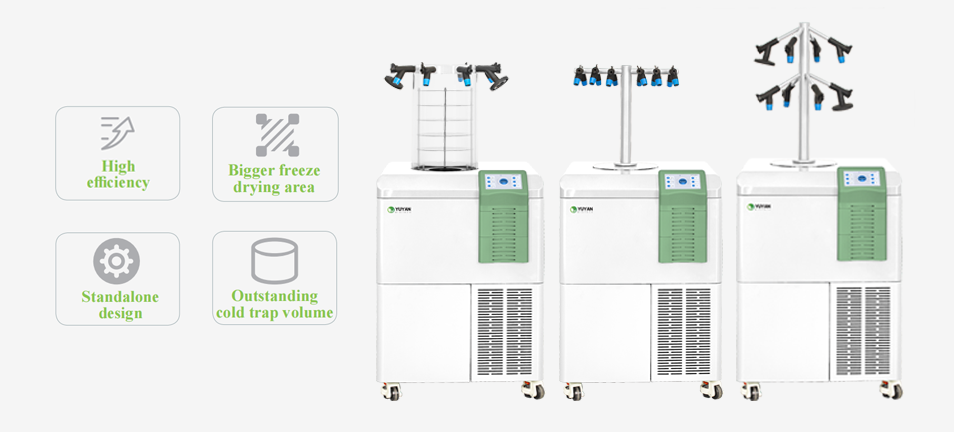

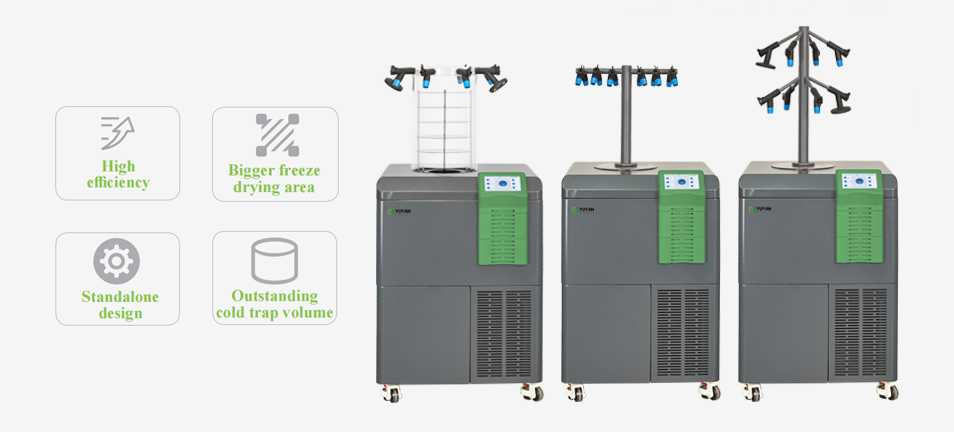

Outstanding cold trap and bigger ice capacity enables more sample freeze drying. Optional T-type manifold chamber and bigger shelves are available to enlarge freeze dying area.
|
Technical Specifcation |
LFD 8 series |
||
|
LFD 8055/8085/8105 |
|||
|
Lyo S operating system |
● |
Condenser temperature |
-55/-85/-105℃ |
|
Vacuum control |
● |
Shelf Qty. |
3 or more shelves |
|
Hot gas defrosting |
● |
Shelf area |
0.16 ㎡ -0.32 ㎡ |
|
Flange face seal |
● |
Shelf dimension |
Ф260mm |
|
External coil condenser |
● |
Condenser efciency |
8Kg/24h |
|
Tefon anti-corrosion coating |
● |
Max. ice capacity |
12Kg |
|
Frosting-proof insulation |
● |
Ultimate vacuum |
0.01mbar/1pa |
|
Sample temperature stimulation |
● |
Vacuum control range |
0.001-1000mbar |
|
One-key pressure relief |
● |
Main unit dimension |
W700*D650*H1015mm |
|
Vacuum pump anti-backflling design |
● |
Main unit weight |
125kg/145kg |
|
Corrossion-resistant pump |
○ |
Main unit power |
1.1KW/1.8KW/1.9KW |
|
Stopperring device |
○ |
Power supply |
16A，220V |
Remarks:● Standard ○ Optiona — N/A
