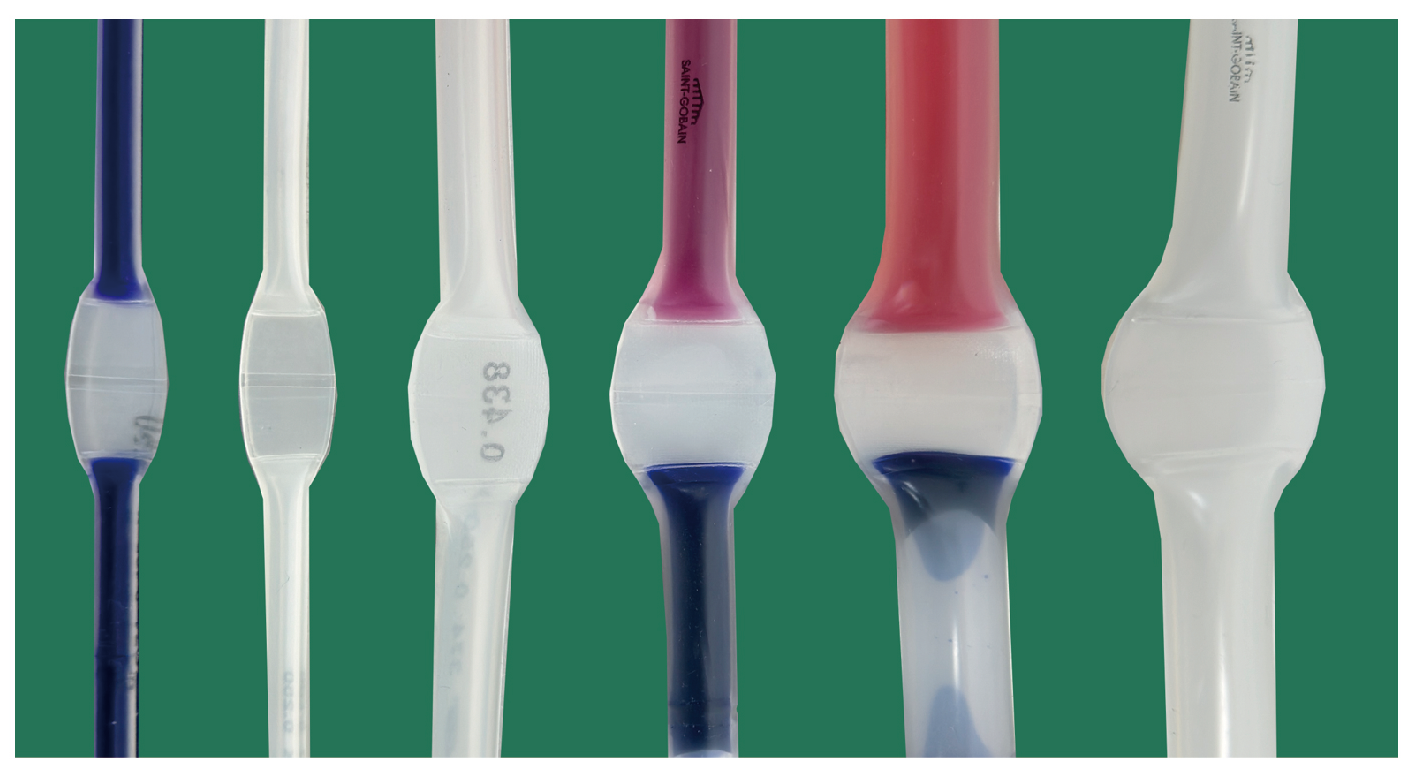

It is a fully automatic device for permanent, leak-free sealing of thermoplastic tubes suitable for C-FLEX, PharMed BPT, Advantaflex and other TPE tubes. The average heat sealing time is 1.5-5.0 minutes.
Technical Parameters
Usage Environment: Ambient temperature 15-35℃, relative humidity 35-65%
Cooling method: Air Cooling
Weight: 4 kg
Hose size: Outer diameter OD x1/4" -1.0" (6.35-25.4mm, the maximum outer diameter of type l is 7/8", and the maximum outer diameter of type ll is 1.0") Thickness 1/16”-1/8"(1.6-3.2mm)
Material: PE.can be disinfected with 75% alcohol
Hose Type: Applicable to C-FLEX, PharMed BPT, Advantaflex and other TPE tubes
Pipeline pressure range: The pressure range of the tube during sealing is -1...+0.5bar.
Welding cycle time:1.5-5.0min
Temperature Sensor: Platinum temperature sensor
Equipment dimensions: 355mm*160mm*148mm
Power supply: 100-240V AC,47-63Hz
Rated power: 75W
