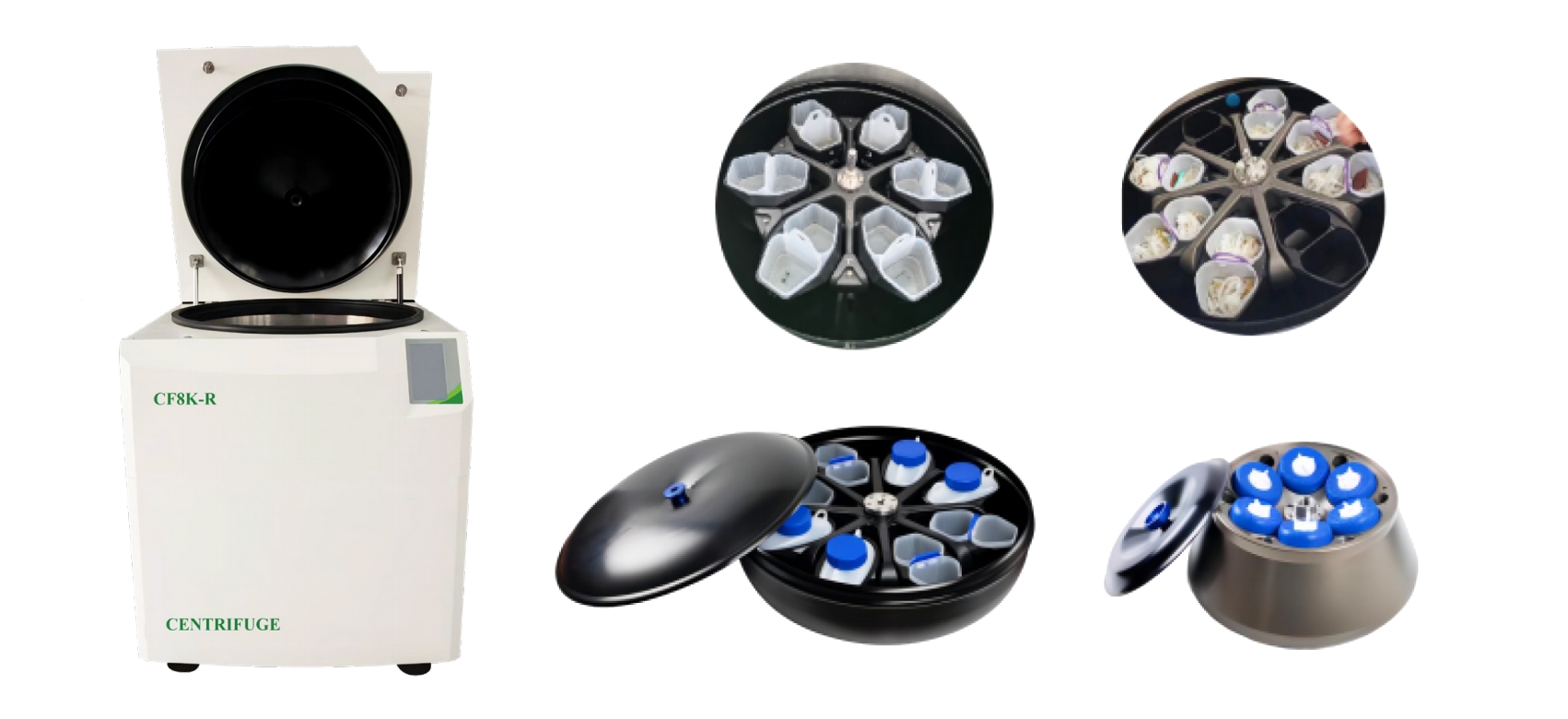

Large Capacity Refrigerated Centrifuge

CF8K-R
CF7K-R

  • Hits:543
  • Time:2025-5-16

Details

Product Information

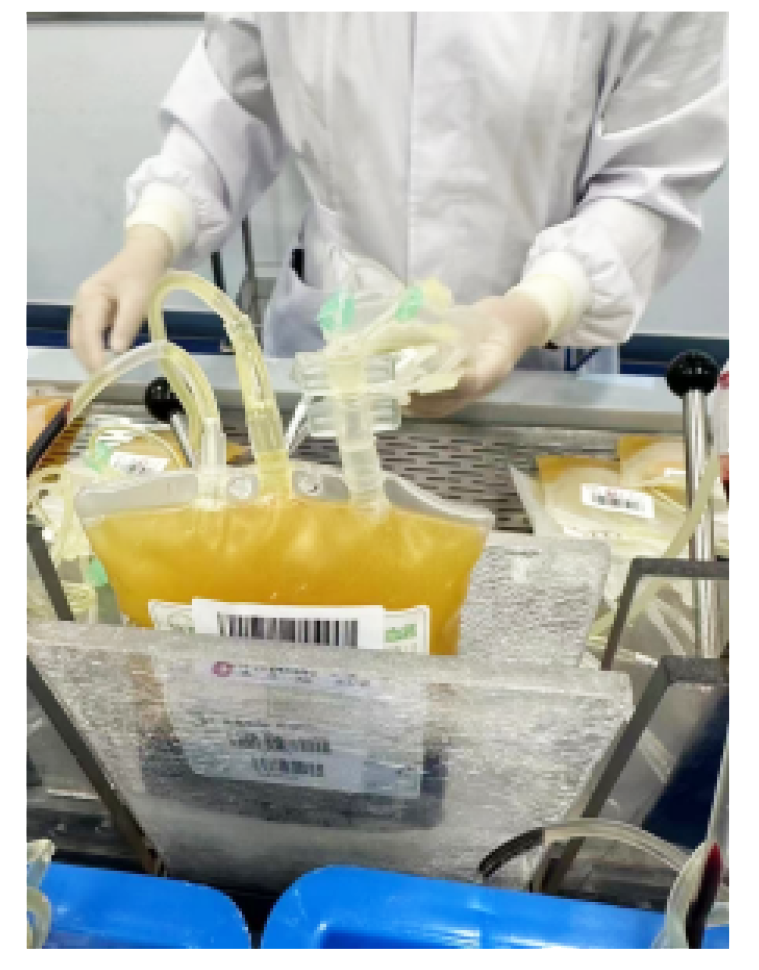

Large capacity refrigerated centrifuge, with safe, reliable quality and superior operating performance, can quickly and efficiently centrifuge and purify samples. 19-liter sample volume and 32 bags of triple blood bag high-throughput centrifugation, greatly improving the operational efficiency, is the ideal choice for blood, biopharmaceuticals, biochemistry, and proteomics, such as large samples and large-volume separations.

Product Features

  • High-precision touch system: 9-inch high-definition touch screen, displaying the preset and current speed, relative centrifugal force, time and temperature information.
  • Vector control technology: Vector control technology makes the centrifugation process more stable, solves the unstable shaking during acceleration and deceleration, and ensures the maximum yield of blood components.
  • Acceleration and deceleration curves: 15 sets of acceleration and deceleration curves can be set to save time and guarantee the centrifugal effect. Acceleration time ≤4 minutes, deceleration time ≤4 minutes.
  • Dual push rods installed on both left and right sides of the chamber door; one-touch integrated lifting of chamber door and rotor lid. Full-surface anti-pinch design without dead zones (including locking positions). The cover will automatically stop and rebound to the initial position if resistance is encountered.
  • Internet of things function: Optional installation of RFID wireless identification module, to realize the non-contact blood bag batch identification in the centrifugation process, information is automatically entered into the management system.
  • Management system docking: Based on the wireless wifi system, the centrifuge control system can be seamlessly docked with the management system of any blood bank, uploading centrifugal data in real time, and the information can be statistically tracked.
  • One-key opening and closing of the chamber door: The chamber door can be opened and closed remotely through the touch screen or APP, and there is no need to correct the alignment direction during the closing process.
  • Lid automatic opening and closing function: The lid can be hung on the door of the centrifuge chamber. It will automatically open and close along with the door, and will automatically align the rotor when the door is closed.
  • Double lock cover: The door lock buckle integrated molding and dual-inhalation door lock technology make the operation convenient, ensuring the safety of the machine operation.
  • Thickened chamber wall: The centrifugal chamber wall thickness is 12mm, using a rolling molding process, to enhance the machine safety.
  • Shock absorption system: The whole machine adopts five-level shock absorption system, effectively reducing the noise and vibration during the centrifugal process, reducing the centrifugal bag breakage rate, and improving the rate of single-step plasma separation.
  • Refrigeration system: France Tecumseh scroll double condensing unit, with fast refrigeration speed, small vibration of machine operation, and the noise of the whole machine is lower than 57dB(A).
  • Optional foot switch for door open: step the foot switch to unlock and open the chamber door automatically. No manual operation required, simplifying the workflow and reducing the risk of contamination or electric shock.
  • Remote start and stop control of the centrifuge as well as remote pre-cooling function via mobile APP (optional).

  • Main interface: The operation interface is simple and intuitive, displaying the running status, actual values, progress indicators, and inputting specified parameters.
  • Permission management: 4 level permission management assign user permission for data management to maintain the security of samples and processes.
  • Curve management: 15 sets of acceleration and deceleration curves display the speed at which the centrifuge accelerates to stops.
  • Program mode: It can save 99 sets of programs, and set appropriate centrifugal parameters for each set of acceleration and deceleration rate, temperature, speed, and time according to user needs to achieve the best centrifugal effect.
  • Data information: Data management is crucial, traceable and secure record data is provided to ensure document traceability.


Rotor Features


P1 Swing-out Rotor

Max. Speed: 5000rpm

Max. RCF: 7295×g

Rotor Volume: 6×1500mL

P2 Swing-out Rotor

Max. Speed: 4000rpm

Max. RCF: 5650×g

Rotor Volume: 6×2400mL

P3 Swing-out Rotor

Max. Speed: 4000rpm

Max. RCF: 5650×g

Rotor Volume: 8×2400mL


Technical parameters

Model

CF7K-R

CF8K-R

Max. Speed

5000rpm

Max. Volume

6×2400ml

8×2400ml

Max. RCF

7295xg

Max. Blood Bag Qty.

12×500ml/24×200ml

16×500ml/32×200ml

Timer

1s~99h59min59sec (1 second increment)

Speed Accuracy

±10rpm

Noise

<57dB(A)

Temperature(℃)

-20~40±1

Precooling function

Yes

Chamber door anti-pinch function

Yes

Control System

Microcomputer processor

Drive System

AC variable frequency motor

RFID wireless identification

Optional

Accel/decel profiles and existing protocol emulation

15 accel, 15decel, multiple emulation profiles

Input Power

7.5KW

Power

AC220V 60Hz

Dimension(L×W×H)

100×86×100(cm)

Net Weight(no rotor)

500Kg

Warranty

3 years for unit, 5 years for powertrain (motor shaft and drive), 5 years for refrigeration
