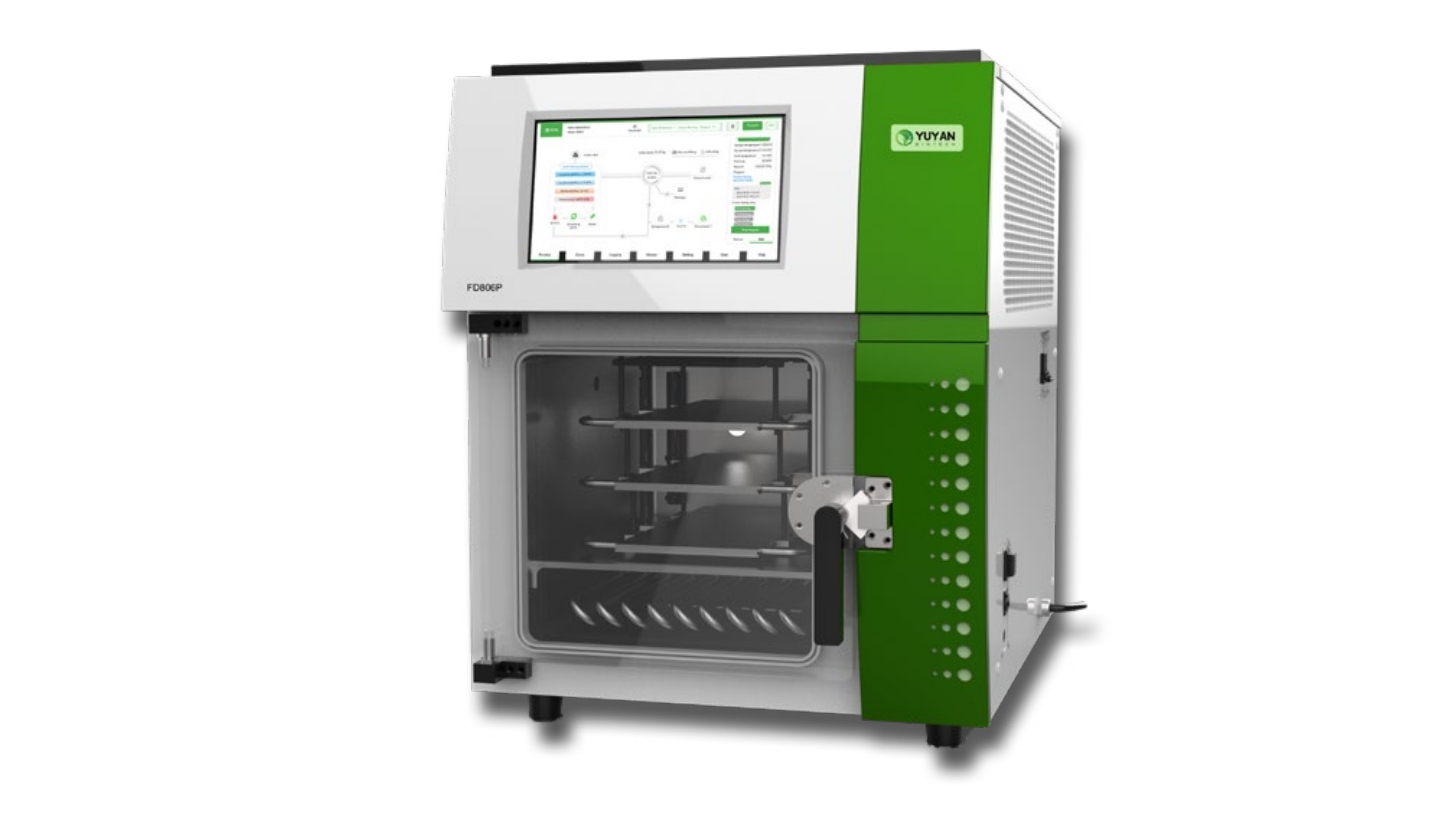

Cube Series-- The superb equipment for R&D and small batch production
Compact bench top pilot freeze dryer is a
perfect small production system applied in research and development for new
products. Whole process in-situ, including pre-freezing, sublimation, secondary
freeze drying, ensures reproducible results. Advanced Android control system
with mass memory can store upto 1000 protocols, real-time display and monitor
all freeze drying parameters. The best ever pilot freeze dryer that suits
perfectly in your lab!
General Features
-
Minimum space requirements: Chamber structure of only 0.6 m³ makes the
freeze dryer small and compact. easy to carry and tits in labs of all sizes.
-
Square drying chamber made of medical grade 316L stainless steel,
perfect sealing, high temperature stability.
-
Powerful shelf temperature control: from pre-freezing to sublimation
to secondary freeze drying all in situ, ensuring perfect repeatability and
results.
-
Multiple freeze drying tasks, including shelf drying, flasks and
vial stoppering.
-
Shelt Intelligent PID temperature control system enables independent
temperature control of every shelf, ensuring preciser temperature control and
stable heating, no temperature overshooting
-
Chamber door is made of organic glass, corrosion-resistant and
transparent, easy to observe experiment process
-
Vial stoppering: hydraulic stoppering function can perfectly meet
sealing requirements and sensitive samples (Optional)
-
Automatic cold trap one-key defrosting, save time between batches
-
Inert gas backfilling protects the sensitive products to the maximum
extent
-
Efficient condenser design: condenser coils are placed below
shelves, which can shorten drying process and prevent vapors from entering into
pump. 2 cold trap temperature are available at your option: -60°C and -80°C
-
Intelligent vacuum regulation can adjust vacuum during sublimation
and secondary freeze drying process, which can avoid bubbles and blowups of
samples, accelerating freeze drying efficiency. (optional)
Controller Features
-

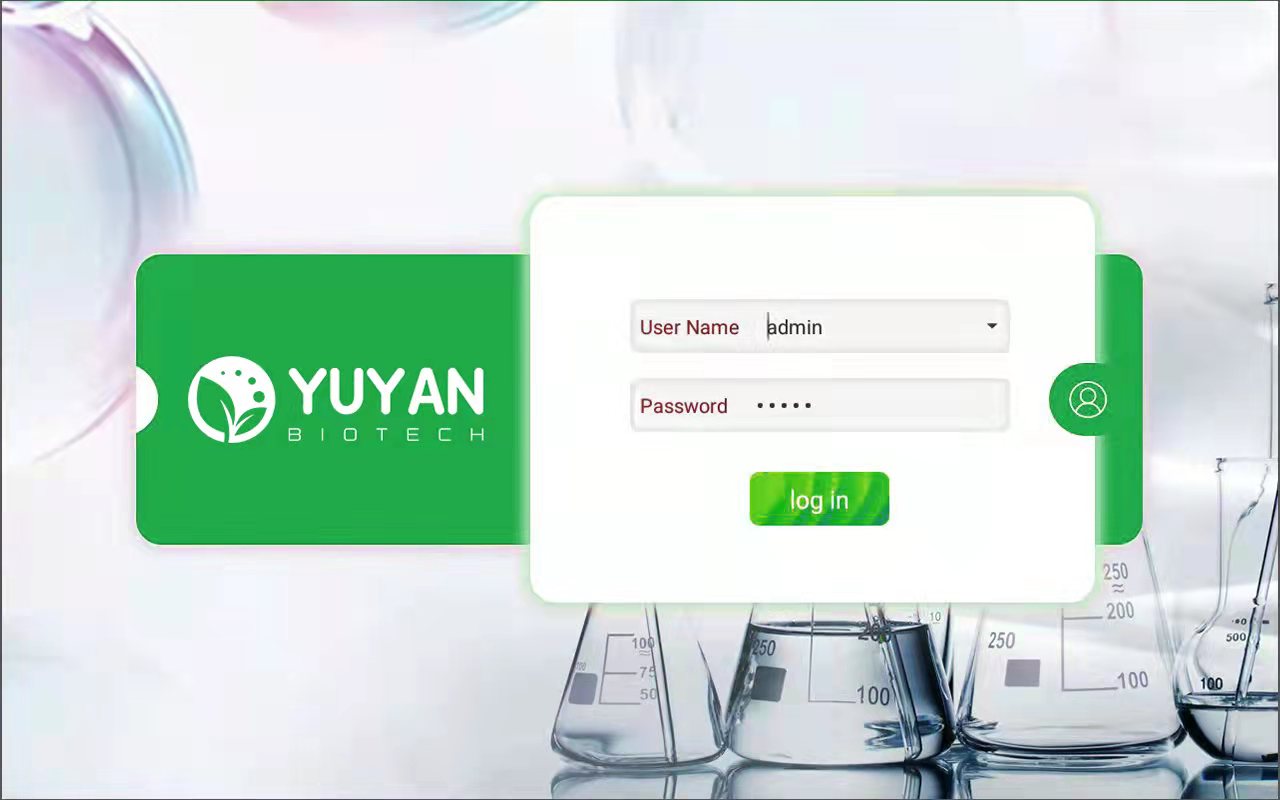

17 inch HD intelligent color touch screen, loaded with Android
system, user-friendly panel, easy operate. experiment data and operation logs
can be output by USB drive.
-

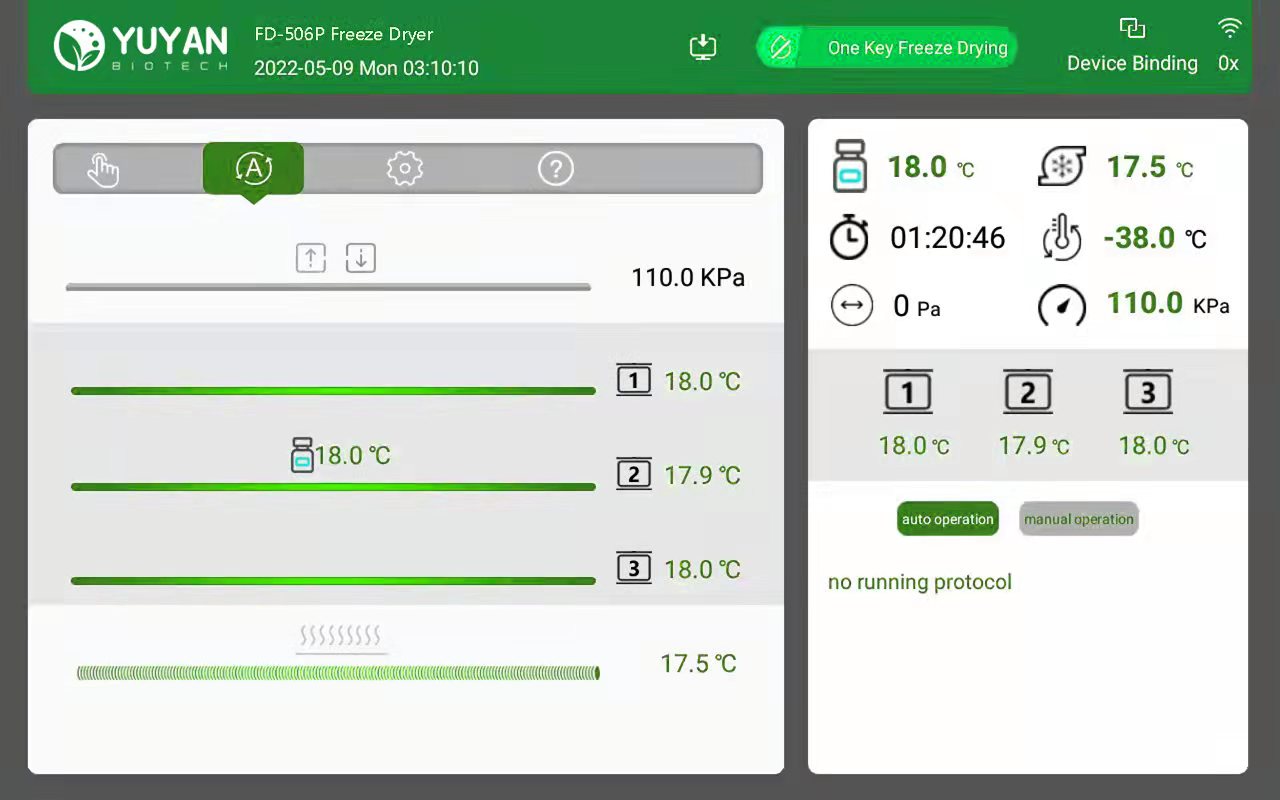

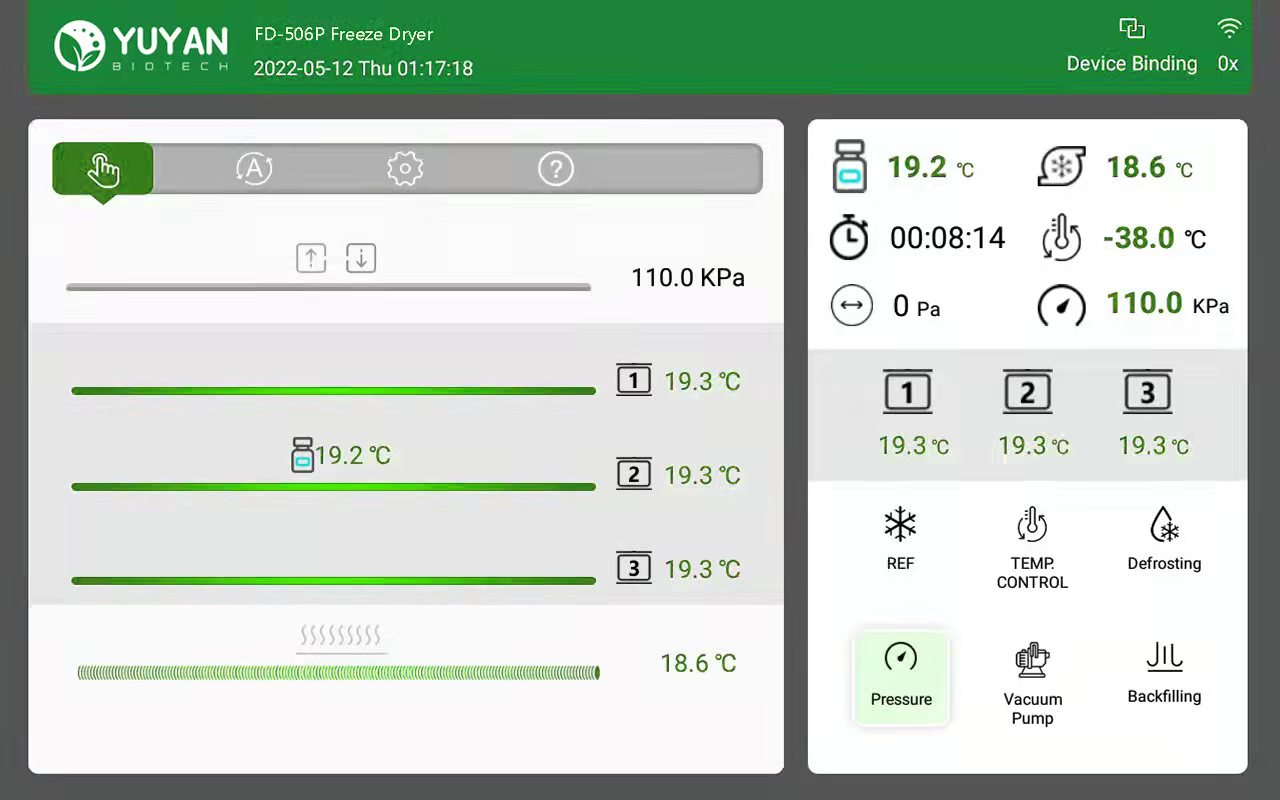

Real-time display vacuum. cold trap temperature, sample temperature,
alarm information.
-

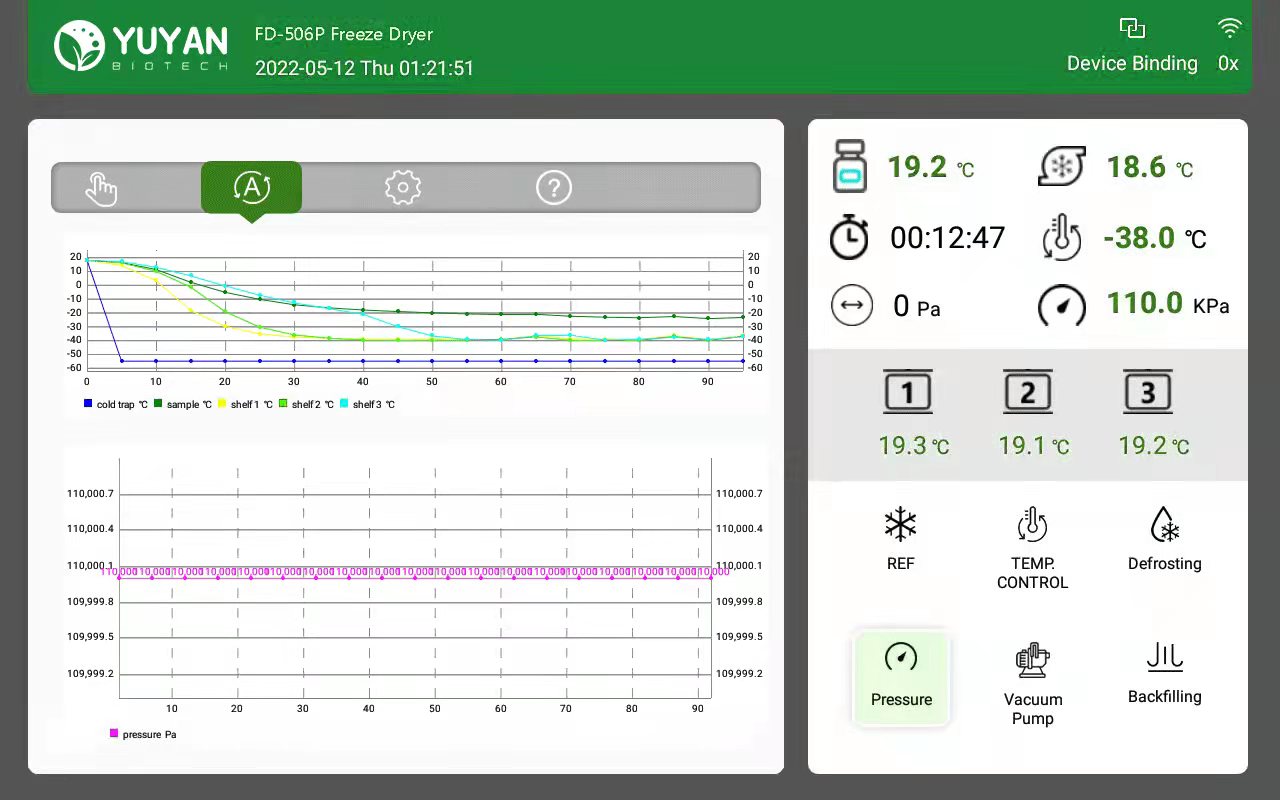

Curve optimization technology can control cooling rate in pre-freeze
stage and heating rate and vacuum in sublimation and secondary freeze drying
stage.
-
Unique lyophilization operation system can edit and store up to 1000
protocols, each contains 50 ramps. Freeze drying process can be paused to rectify
parameters.
-
Freeze drying data can be monitored and saved automatically, easy to
track whole freeze drying process.
-
3-level user access management, making all the data real, safe and
trackable
-
Wireless monitor system. equipped with wifi wireless control
module. mobile APP is available to real-time monitor freeze drying parameters
such as vacuum, cold trap temperature, sample temperature. freezing drying
duration, etc.(Optional)
-
App will push notification and send message when power supply fails,
enabling operator react immediately and save samples (optional)
|
Technical Parameters—Cube Series
|
|
Model
|
FD806P-3
|
FD806P-2
|
|
Cold trap temperature
|
-85°C(Ambient≤23℃)
|
|
Vacuum
|
≤ 5Pa (no load), ultimate vacuum≤1PA
|
|
Inert gas backfilling
|
0.2um
|
|
Shelf dimension
|
230mm x365mm
|
|
Shelf Qty.
|
3
|
2
|
|
*Max freeze drying area
|
0.25 m²
|
0.16 m²
|
|
Shelf distance
|
60mm
|
90mm
|
|
Shelf temperature range
|
-50~+60°C(no load, Ambient≤23℃)
|
|
Max. Ice capacity
|
6kg
|
|
Pump speed
|
2L/s
|
|
Flask
|
4×50ml, 4× 100ml, 4×250ml, 4× 500ml (Optional)
|
|
Capacitive touch screen
|
17inch
|
|
Hydraulic stoppering
|
Optional
|
|
Chamber dimension
|
359×450×364mm
|
|
Power
|
2.8KW
|
|
Power supply
|
AC220V±10%, 50Hz
|
|
Dimension
|
630×740×850mm
|
|
Weight
|
215KG
|
