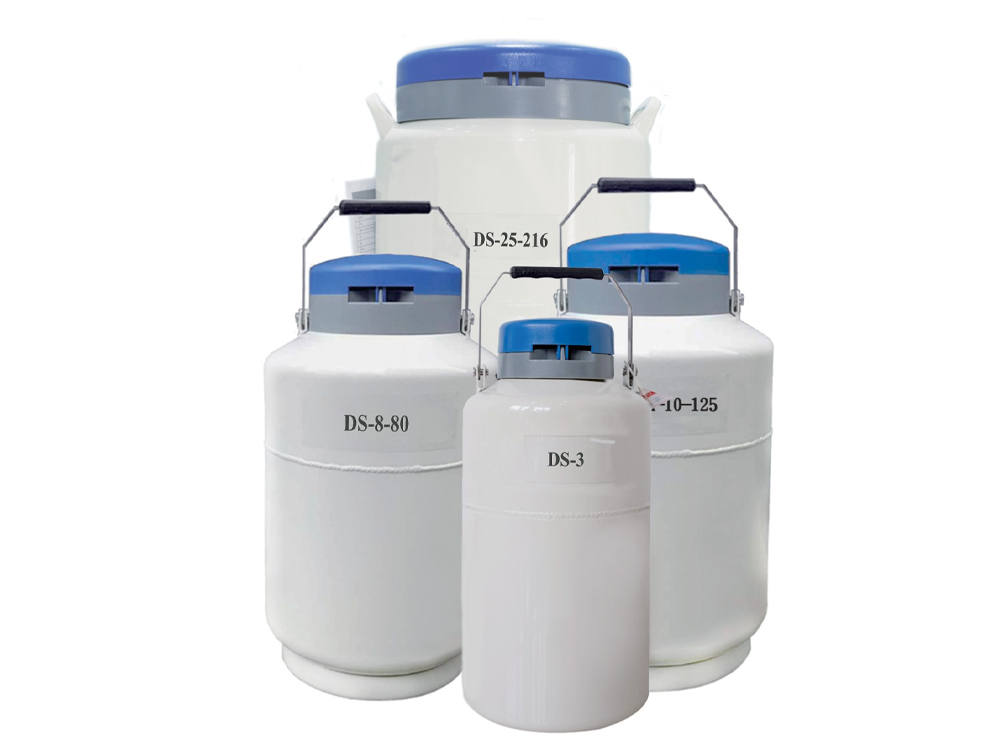

LN2 Freezer
DS Series

  • Hits:634
  • Time:2025-2-11

Details

Suitable for sample transportation under cryogenic conditions. Featuring a dedicated internal LN₂ absorbent design, it effectively absorbs and retains liquid nitrogen, preventing LN₂ spillage even when the container is tilted. Equipped with a special stainless-steel mesh screen to separate the storage compartment from the LN₂ absorbent, it prevents fragments of absorbent material from mixing with cryovials. This eliminates hazards caused by liquid nitrogen release during transit, and is especially suitable for short-duration air transportation such as aircraft shipment.

Advantages

★  LN₂ Absorbent

It adopts a dedicated internal LN₂ absorbent design to effectively absorb and retain liquid nitrogen. No liquid nitrogen will spill even if the container is tilted, ensuring transportation safety.

★  Mesh-Screen Separated Storage

A special stainless-steel mesh screen separates the storage compartment from the LN₂ absorbent, effectively preventing absorbent debris from mixing with cryovials to guarantee sample safety.

★  Compact & Lightweight

Constructed with specially-made durable aluminum structure, it features high strength and low weight. Equipped with handles for convenient portable transit.

★  Low LN₂ Consumption

High-vacuum insulation technology and wrapped multi-layer insulation enable low-energy operation of the container and achieve ultra-low evaporation loss of liquid nitrogen.

★  Low-Heat-Transfer Design

Special thermal-insulated joints between inner and outer vessels, narrow neck opening design, and custom fiberglass material block heat conduction between the inside and outside of the LN₂ tank.








Product advantages

  • High strength and low weight aluminum construction, strong and durable.
  • Dry transportation.
  • Cryobox storage.
  • Low temperature absorbent.
  • Lower LN2 consumption, no LN2 overflow.
  • 30-year designed life, 3-year vacuum warranty.

Technical Parameters

Models

DS-3

DS-6-80

DS-8-80

DS-10-125

DS-25-216

Product Performance

Volume(L)

3

6

8

10

25

Neck Opening (mm)

50

80

80

125

216

Static Evaporation rate (L/d)

0.12

0.3

0.24

0.5

0.95

Static Holding Days (d)

25

20

33

20

26

Storage Capacity

Canister

Canister Diameter (mm)

Φ38

Φ63

Φ63

Φ97

-

Height(mm)

120

120

276

276

-

Quantity

1

1

1

1

-

Quantity of 0.5cc straws

132

820

1640

1508

-

Quantity of 0.25cc straws

298

1780

3560

3322

-

Square Racks

Quantity

-

-

-

1

1

Rack Dimension (mm)

-

-

-

82×84

142×144

Box Dimension (mm)

-

-

-

76×76

134×134

Layers of Rack

-

-

-

4

5

2ml Vials(Internally Threaded)

-

-

80

100

500

25ml Blood Bags

Quantity of Racks

-

-

-

1

-

Layers of Rack

-

-

-

2

-

Quantity of Each Layer

-

-

-

3

-

Quantity of Blood Bags

-

-

-

6

-

50ml Blood Bags

Quantity of Racks

-

-

-

1

-

Layers of Racks

-

-

-

1

-

Quantity of Each Layer

-

-

-

3

-

Quantity of Blood Bags

-

-

-

3

-

Container Size

Total Height(with lock cover)(mm)

478

482

630

560

755

External Diameter (mm)

224

300

300

300

398

Empty Weight (without canisters) (kg)

5.12

5.62

8.51

7.6

16

Empty Weight (with canisters)(kg)

5.19

6.06

8.9

8.22

19.4

Accessory

Lock Cover

√

√

√

√

√

Protection Leather

√

√

√

√

√

Canisters

standard 1 piece canister- φ38mm,120mm

standard 1 piece canister- φ63mm,120mm

standard 1 piece canister-

φ63mm,276mm

standard 1 piece square

bucket-4 layers

standard 1 piece square bucket-5 layers

The air transportation series is suitable for transporting samples in cryogenic environment (gas phase storage, temperature below-190℃).

which avoids the danger of liquid nitrogen release during transportation, especially for short-time air transportation such as airplanes. There is liquid nitrogen adsorbent inside. which can absorb and retain liguid nitrogen.Even if the container is dumped, there will be no liquid nitrogen overflow, There is also a special stainless steel mesh screen to separate the storage space and the liquid nitrogen absorbent, which can avoid the liquid nitrogen absorbent material mixed into the cryo-tubes. It is mainly suitable for user needs of laboratory users and a small number of samples for short-term transportation.
